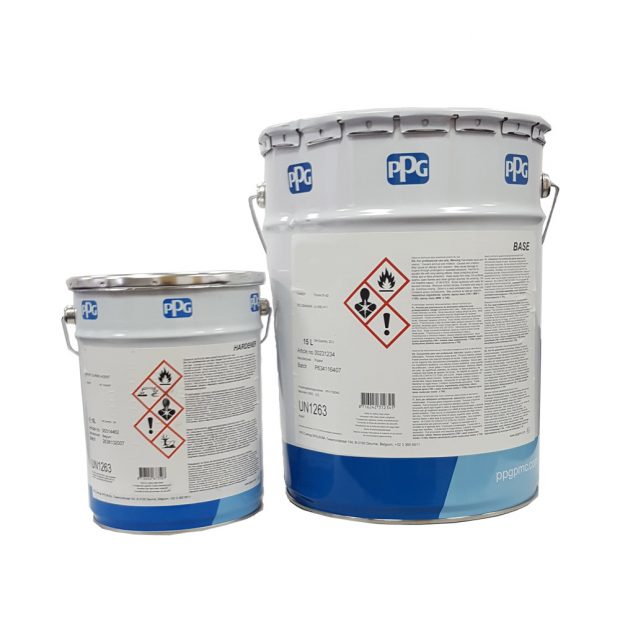

PPG SigmaCover 410

A two-component, high solids, high-build, polyamide cured epoxy coating for steel and concrete structures exposed to atmospheric land or marine conditions.

  • Colour: Available in MIO or conventional pigmented grade
  • Gloss Level: Flat
Categories ,

PPG LogoPPG SigmaCover 410 is a two-component, high solids, high-build, polyamide cured epoxy coating for steel and concrete structures exposed to atmospheric land or marine conditions.



Product Features and Benefits

  • General-purpose epoxy buildcoat in protective coating systems, for steel and concrete structures exposed to atmospheric land or marine conditions
  • Excellent durability
  • Can be recoated with various two-component and conventional coatings, even after long weathering periods
  • Easy application by airless spray
  • Colours: available in MIO or conventional pigmented grade
  • Gloss level: Flat



Method of Application

  • Air spray
  • Airless spray
  • Brush/Roller

Please refer to the product Data Sheet for surface preparation, mixing and application instructions.



Overcoating

This product has an unlimited overcoating interval provided the surface is free from chalking and other contaminations.

The optimum intercoat adhesion is obtained when the subsequent coating is applied before the full cure time of the previous coating has elapsed.

In cases of exposure to direct sunlight or when the surface is contaminated it is recommended that the surface be cleaned and roughened to ensure good adhesion of the subsequent coating.

Please contact us for suitable topcoats for PPG SigmaCover 410.



Thinner

Air Spray: PPG Thinner 91-92
Volume of Thinner: 0 – 10% depending on required thickness and application conditions.

Airless Spray: PPG Thinner 91-92
Volume of Thinner: 0 – 10%, 30 – 40% when mist coat applied.

Brush/Roller: PPG Thinner 91-92
Volume of Thinner: 0 – 5%

Note:

  • Application by brush may show brush marking, due to the thixotropic nature of the paint and is most suitable to small areas, tight angle areas or for stripe coating or touch-up
  • Application by roller will leave roller marking and is suitable for minimum DFT requirements only
  • A roller suitable for epoxy application must be used
  • Adding too much thinner results in reduced sag resistance and slower cure
  • Thinner should be added after mixing the components

Refer to product Data Sheet for further details.



Cleanup



Safety Precautions

Adequate ventilation must be maintained during application and curing (please refer to Information Sheets 1433 and 1434).

For paint and recommended thinners see Information Sheets 1430, 1431 and relevant Material Safety Data Sheets.

This is a solvent-borne paint and care should be taken to avoid inhalation of spray mist or vapour, as well as contact between the wet paint and exposed skin or eyes.

Please refer to the product Data Sheet and Material Safety Data Sheets for full details regarding the safe use of this product. We also offer free technical advice – click here to contact us.

Basic Data at 20°C (68°F) for mixed product:

Number of components Two
Mass density 1.5 kg/l (12.5 lb/US gal), depending on color MIO: 1.9 kg/l (15.9 lb/US gal)
Volume solids 80 ± 2%
VOC (Supplied) Directive 1999/13/EC, SED: max. 126.0 g/kg
UK PG 6/23(92) Appendix 3: max. 240.0 g/l (approx. 2.0 lb/US gal)
Recommended dry film thickness 75 – 200 μm (3.0 – 8.0 mils) depending on system
Theoretical spreading rate 10.7 m2/l for 75 μm (428 ft2/US gal for 3.0 mils)
Dry to touch 3 hours
Overcoating Interval Minimum: 8 hours; Maximum: Extended
Full cure after 7 days
Shelf life Base: at least 24 months when stored cool and dry. Hardener: at least 24 months when stored cool and dry
Pot life 6 hours at 20°C (68°F)

Please refer to the Data Sheet for additional technical data.

Download Datasheet
